妙用与间介：Purpose and introduction

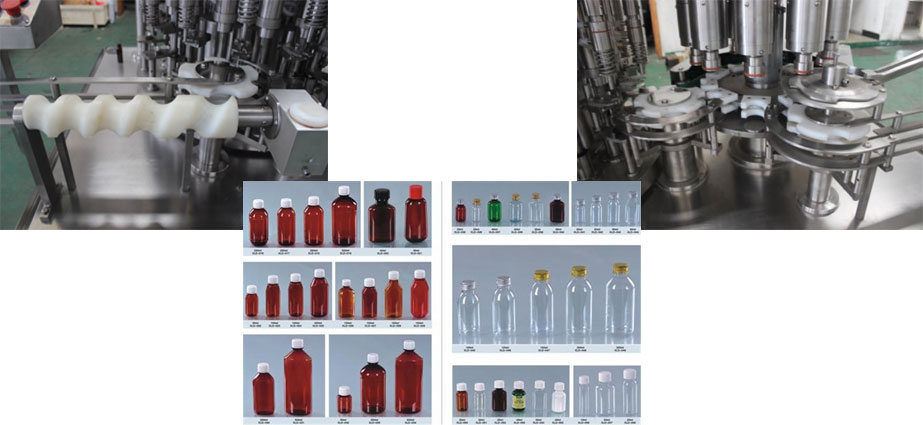

该机适合于对30-500ML编波璃瓶、朔胶材质瓶的包装的生产销售线封好。利用往来账结交式活塞环完成包装的生产销售线，电磁波震荡送盖，还还也可以轧盖(朔胶式)或旋盖(朔胶材质盖)封好，还还也可以和后的的生产销售工艺技术机器连接 根据的生产销售线，然而还还也可以挑选百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优点和缺点：characteristic

装量精确，杜尽渗漏。缺瓶不灌装生产线。 直流变频可控硅调压。 主动地展现计数器功较。 空机均按GMP要方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

系统性能参数/technical parameters：

型号 model	NQGX30-500
选用外形尺寸Cutting dimension	30-500ml
主产地能力素质Production capacity	80-200瓶/分（罐/分钟左右）80-200 bottles/min (cans/min)
灌装设备gps精度 Filling accuracy	≤±1%
供电 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
设备净含量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
