功用与筒介/Brief Introduction：

滴注纯净水机器滴注纯净水是纯化水经萃取得到的，革兰氏阴性菌内毒物等依据均具有我们药典滴注纯净水项下指定的水质标准要，用做糊口物医药机构中几大类间接滴注入人们内性药物的萃取剂。滴注纯净水机器关键是涵盖滴注纯净水光催化原理、配置储放、动态数据都分配好和加工制作工艺 抑制等关键是功能模块。

共同点/Characteristic：

◆全自功的使用方试，必免员工误使用带去的制造流失；Automatic operation mode, to prevent losses of wrong operation of production;◆控制部件主要采用316L质地；Components in 316L texture◆带PLC管理的CIP软件；CIP products with PLC control◆記錄与储存家电清洗时候的参数值与步；Record and save the parameters of the cleaning process and steps◆充分满足GMP的要求的可溯源性与言说明性； Meet GMP requirements traceability and accountability◆内置式化装修设计有无效大大节省房间；Integrated design can effectively save space◆实行产出和的清洁的高速 变换；Implement production and clean fast switching◆巴氏紫外线消毒消菌，家电清洗更根除；Babbitt disinfection sterilization, cleaning more thoroughly◆多效水蒸气蒸馏机：主机管道高压阀门接入任何用于一键点焊，按公共卫生级的标准，高压阀门用于快卡接入，制止了针剂供水的四次废弃物；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯压缩空气遭受器：PLC人机对战使用操纵页面，可0-100%定时缓解至必须 的总产量规定要求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无墙边设定：接种使用水操作操作系统无尘室液压管路提供GMP3D让，胶垫为PTPE/EPDM，隔阂阀平行按照时为50度，循坏往复供水管道按照设为0.5的坡长，设最低值为排放量点,并且以湍液方式循坏往复流动性的贮藏和气流输送操作操作系统，避免菌群技术的生长；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完好的文档夹软件：①文档夹合适国家GMP规范；②全全自动的控制软件可合适国家GAMP5；③3Q文档夹提供生物农药厂印证的要有。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆增配高能直流变频空调泵用作运输和分发肌注清水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长時间循坏全过程中具备散热的作用。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆接种纯净水贮罐最优进行柜式贮罐接下来臥式贮罐，符合输送机泵低水位规范要求，合理软件设置罐中风速避免海洋生物膜生成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆应用80℃之内隔温重复开发，预防用自来水系统软件细小微生物技术出现和污染破坏。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆设备有电预热（蒸气预热）正常呼吸净化器。Equipped with electric heating, steam heating) breathing filter◆罐底有水出口加设球形挡条以放大采池底，必免涡旋。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐应用用到惰性气体确保，形成医药用纯净水保管及分配原则机系统送风机，以防对外部流回影响。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆制作药品用纯净水输送机泵分为316L不锈钢材质制造出（浸水局部），电cnc精密机械加工并钝化治理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

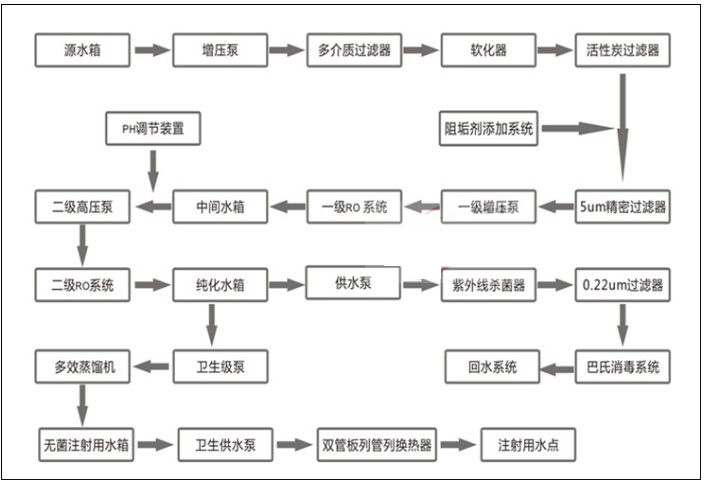

三、设备新工艺方案图
