应用场景与简绍/Brief Introduction：

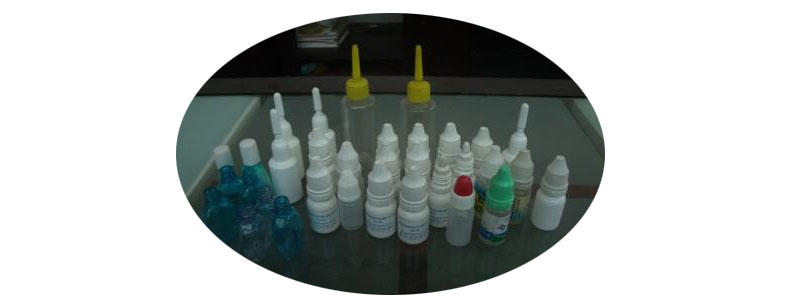

机器使用于于2-30ML各项在材质的半圆扁形可塑料或玻璃窗瓶的眼药液分装、电子设备烟油等小的用药量分装.机器由高要求气缸精度等级机购可以给予精度等级等分盘位置上塞上盖;提高度气缸转动系统可以给予旋盖头的启闭;恒最大扭矩旋盖;蠕动消化泵压力容器检验分装;触碰屏设定.无瓶不分装,不添加内塞,外盖.具位置精准,转动系统趋于稳定,爱护瓶子,压力容器检验准.运行简单的等长处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特别/Characteristic：

◆微手提电脑选用、装量准确、操作流程有利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱速比可做出变频器变频器变速。the mainframe running speed is stepless frequency conversion.◆加工量全自动按量调控。the product quantity can be controlled. ◆多种不同机械故障表明功能性(如低压力表。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆系统自动式断电功能表，对某个轨道、造成累计无分装、无内塞具体情况可系统自动式断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技術性能/Main Technical Parameters：

使用金桥铜业跨接线的截面积大小Filling Volume	2-30ml
的生的生产作用力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线精度等级Filling Precision	≤±1%
供电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自行上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
瓦数 Power	2.0 kw
机气净重量Weight	550 kg
自己的外观厚度Dimension	1800*1000*1500mm
