的用途与介简：/Purpose and introduction

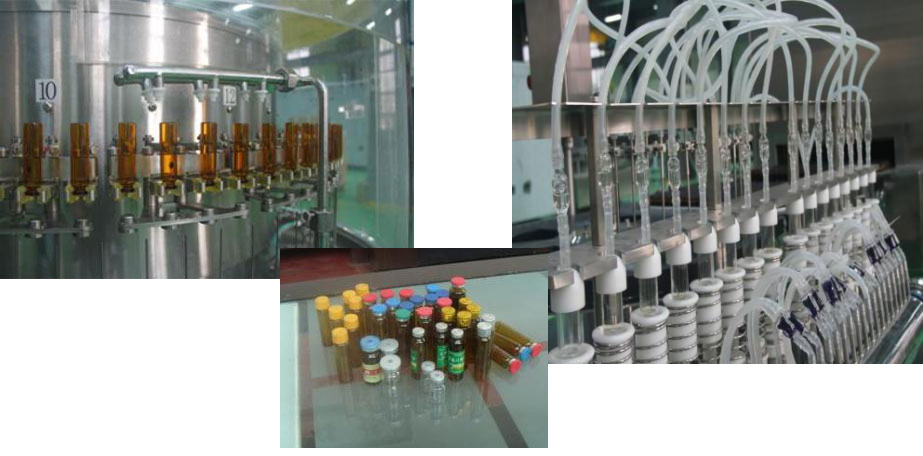

冲剂方式方式液洗烘灌轧联合线由立试mri波洗瓶机、隊道式暧风 重复过滤除菌干燥箱、冲剂方式方式液灌装设备设备轧盖机等组成的，适当于 5-30ml 等各不相同规 格冲剂方式方式液瓶的生產。可实现对产品生產中安瓿瓶淋水、mri波清洁、冲水、充 气、风干过滤除菌、冷确、灌装设备设备、轧盖等方法操作步骤的联合电脑运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特质:/characteristic

◆洗瓶机应用自动化手夹瓶，选用许多种尺寸的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶主要采用雾气喷针导杆定位嵌入具体方法，擦拭郊果好，节约资源再生能源。并配有针架防抽动传动装置，不断提高喷针嵌入瓶里的准确的度，可以减少断针现像发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶大部分雾水内部管道、喷针完成独立的分割，杜绝了对称弄脏，不符合GMP规则标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前改加呵护块，有呵护罗杆，减低碎瓶影响Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用整体性国外进口发送到带，联系拨块运送补血口服液液，电脑运行不稳定性安全可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱用到红外线蒸汽加散导热管，不銹钢蒸汽加散导热管加厚蒸汽热处理煮沸湿度匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机可以选择配陶瓷厂家泵、不锈钢304泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖功能模块。Pieces filling without bottle filling, no bottle no rolling function.◆整线分为PLC总控住、直流变频、液晶屏屏控住能力，开机电脑运行稳定性高稳定。液晶屏屏可体现各单人的开机电脑运行壮态下，各控住点的压力、大气压力、风速、温度表等体现，各旋转开关壮态下和出现问题的体现，出现问题的自我管理的诊断和出现问题的深入分析及查出策略。使整个的研发环节完成全自动化化控住，联线包括三机自动化控制平衡量平衡装置，有保障研发动态平衡稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.给出客人的需求，还可供配选：According to the needs of customers, but also available for selection:◆西门子系统、斯耐德、三菱数控系统、台达等产品品牌调控系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压强、水温表及高周波波难度、玦尘离子、流速在线播放验测、报警功能、记录好、缩印软件。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作屏蔽器操作系统。Mixer ORABS, CRABS, aseptic isolator system.

技術技术指标：technical parameters

适用于规格参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌计算精度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格品率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
